Touchscreen Controller
Works in all major DAWs
Mac & PC as VST3 / AU / AAX
Can Host VST2 / VST3 / AU in your DAW

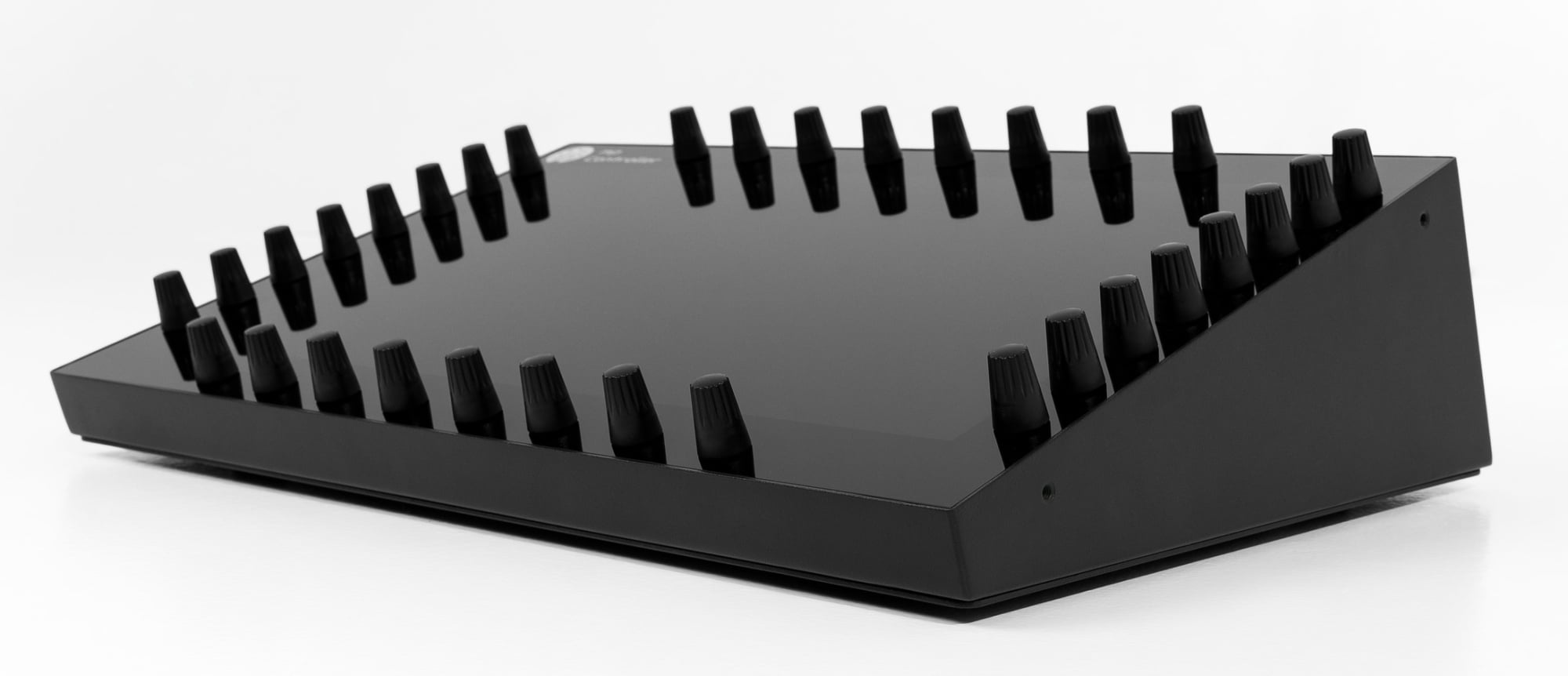

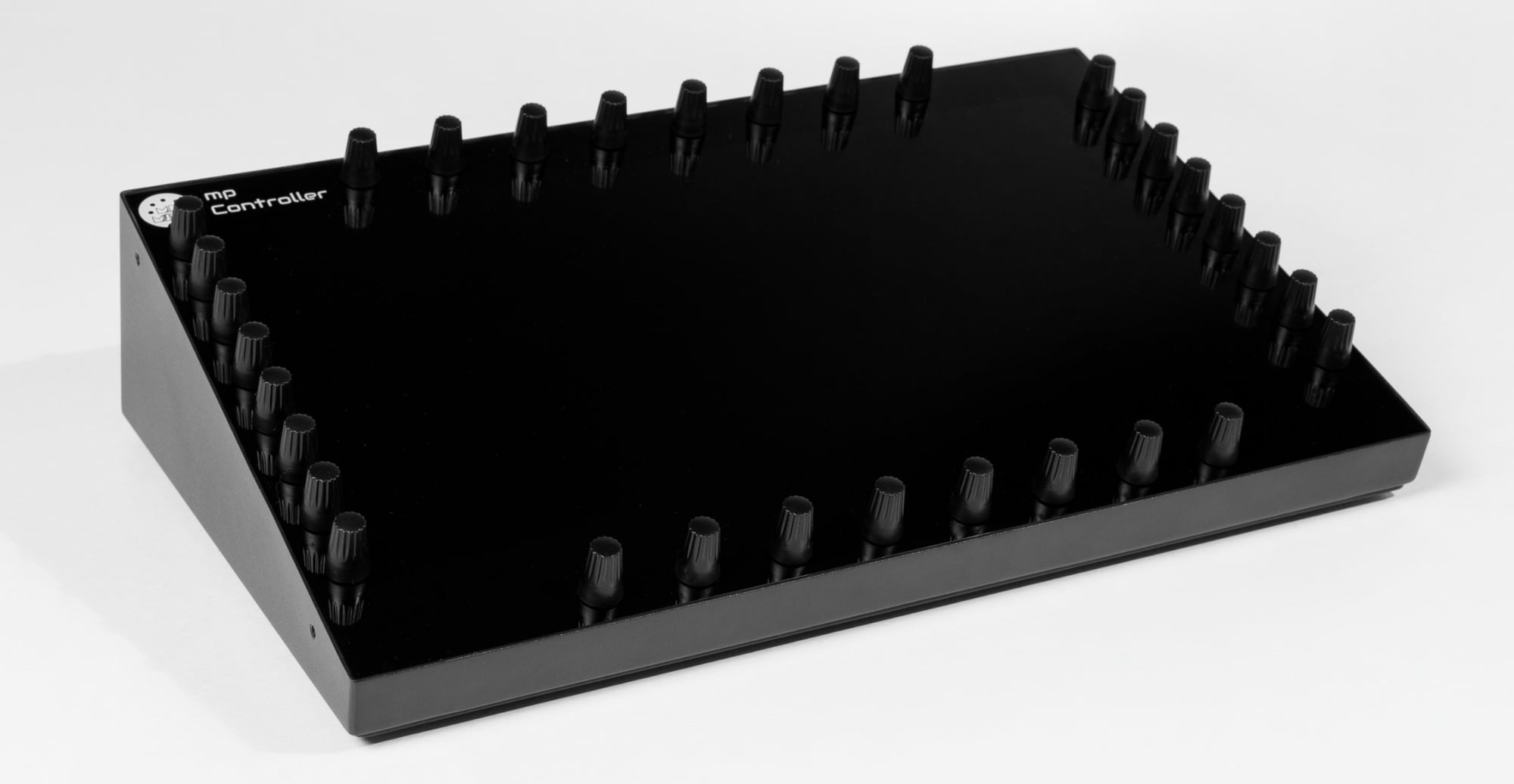

Controller Hardware Specifications
Model 1A

01.

Dimensions

Width: 403 mm
Length:255 mm
Back height: 102 mm
Front height: 35 mm
Weight: 3.75 Kg

02.

Encoders

32 high quality endless encoders. Controllable resolution via the MP host plugin
Modes: Absolute and Relative
Per Encoder Options: Resolution, Polarity, Range, Set CC Id

03.

Touchscreen

15.6' IPS multitouch monitor
Resolution 1920 x 1080
Powered by USB-C No external power adapter needed


Windows 10, the touchscreen is multi-touch enabling up to 10 concurrent touch-points, and the MP MIDI Host software is now a multi-touch interface. The MP Host plugin is multi-touch ready.

Mac OS X, the touchscreen operates with single touch, due to limitations of the OS X. Additional touch functionality drivers are needed for Mac OSX Catalina 10.15.4 and later Mac OS versions.

04.

Enclosure

Metallic enclosure with mounting holes on the sides

05.

Connections

1 x USB-A cable, provides power to the monitor and transmits touchscreen data
1 x USB-A cable for the MIDI controller
1 x HDMI cable for video connection
None of the USB connections require high bandwidth, any USB version will work USB-2 or USB-3

06.

Cables Included

2 x USB-C to USB-A 2m cables,
1 x USB-C to USB-C 2m cable and
1 x HDMI to HDMI 2m cable

07.

Online Manual

for more information see the online manual here and our FAQ section

MP Midi Controller
MP Midi Controller
and DAW Plugin

Available in VST/AU/AAX
On Mac and PC
